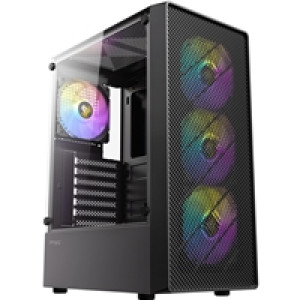

AX26 RGB elite Mid-Tower Gaming Case

Unique Design & Powerful Heat Dissipation
AX26 RGB Elite features a grille-style front panel that enhances airflow for efficient cooling. With a half-view tempered glass side panel, it provides a sleek and stylish showcase for your build.

Grille-Style Front Panel Design
Designed with a high-airflow, grille-style front panel, maximizing intake airflow while maintaining a modern aesthetic.

High-Airflow Front Panel
Optimized ventilation with massive air intake at the front, top, and bottom, ensuring stable system performance.

I/O Panel
Power, LED On/Off Button, 2 x USB 2.0, 1 x USB 3.0, MIC / HD-AUDIO

Powerful Cooling Compatibility
Max. CPU Cooler Height : 155mm. Supports most of the high-end air coolers.

Specifications

Main Spec

Dimensions
345 x 207 x 451mm (DWH)

Form Factor
Mid Tower

Materials
Steel+Plastic

Mainboard Support
ATX, Micro-ATX, ITX

Front Access & Controls
Power, LED On/Off Button, 2 x USB 2.0, 1 x USB 3.0, MIC/HD-AUDIO

Side Panel
Tempered glass

Drive Bays

Expansion Slots
7

3.5" /2.5"
2/1

2.5"
2(The motherboard width must be less than 185mm)

Fan Support

Front
3 x 120mm / 2 x 140mm

Top
2 x 120mm

Power supply
2 x 120mm

Rear
1 x 120mm

Included Fan(s)
3 x 120 Fixed RGB fans at the front + 1 x 120 Fixed RGB fan at the rear

Radiator Support

Front
120 / 140 / 240 / 280mm

Clearance

Max GPU Length
= 295mm (When the fan is installed at the front)
= 270mm (When the fan is installed at the rear)

Max CPU Cooler Height
= 155mm

Max PSU Length
(Include Cable)=170mm(with HDD)
(Include Cable)=295mm(without HDD)

Miscellaneous

Dust Filter
Front(Non-removable) / Bottom

Net Weight
3.96 kg

Gross Weight
4.85 kg

Warranty
1 Year
