Unrivaled Wi-Fi 6 Speed?Breaks the gigabit barrier with speed up to 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz)
Arm Your PC with Wi-Fi 6 Technology?Archer TX3000E leverages advanced 1024-QAM and MU-MIMO technologies, along with support for a 160 MHz bandwidth, to deliver faster, clearer Wi-Fi and fully unleash the capabilities of Wi-Fi 6 routers.
Ultra-Low Latency?The revolutionary combo of OFDMA and MU-MIMO ensures the most efficient Wi-Fi connection for your PC, reducing latency for faster speeds.
Wider Signal Coverage?Two multi-directional antennas with the magnetized base are designed for optimum signal reception
Bluetooth 5.3?The latest Bluetooth technology achieves Faster Speed and Broader Coverage than older versions
Improved Security?The latest security enhancements WPA3 provides enhanced protection in personal password safety
Fine Crafting?Specialized heatsink and gold plating is crafted to improve stability and reliability even in hot environments
Backward Compatibility ? Full support for 802.11ac/a/b/g/n standards

Specifications

Interface
PCI Express x1/x4/x8/x16

Dimensions (W x D x H)
3.7 x 4.8 x 0.8 in
(95.2 x 120.8 x 21.5 mm)

Antenna
Two High-Gain Dual Band Antennas
Magnetized Antenna Base

Bluetooth Interface
F_USB 2.0

Wireless Standards
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/g/b 2.4 GHz
Bluetooth 5.3

Wireless Signal Rate
5 GHz
11ax: Up to 2402 Mbps(dynamic)
11ac: Up to 1733 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11a: Up to 54 Mbps(dynamic)

2.4 GHz
11ax: Up to 574 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11g: Up to 54 Mbps(dynamic)
11b: Up to 11 Mbps(dynamic)

Wireless Reception Sensitivity
5 GHz :
11ax HT160:-56.25dBm
11ax HT80: -59dBm
11ax HT40: -62.25dBm
11ax HT20: -65dBm

11ac HT160:-62dBm
11ac HT80: -65.5dBm
11ac HT40: -69.75dBm
11ac HT20: -73.75dBm
11n HT40: -74.5dBm
11n HT20: -77.5dBm
11a 54Mbps: -77.75dBm
11a 6Mbps: -94.5dBm

2.4GHz :
11ax HT40: -60.75dBm
11ax HT20: -63.75dBm
11n HT40: -73dBm
11n HT20: -76.25dBm
11g 54Mbps: -76.5dBm
11b 11Mbps: -89dBm

Wireless Transmit Power
5 GHz: 28dBm(FCC) / 23dBm(CE) (EIRP),
2.4 GHz : 24dBm(FCC) / 20dBm(CE) (EIRP)

Wireless Modes
Client Mode
Hotspot Mode

Wireless Security
Support 64/128 bit WEP, WPA/WAP2/WPA3,
WPA-PSK/WPA2-PSK, 802.1x

Modulation Technology
DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM, 1024QAM

Certification
CE, FCC, RoHS

System Requirements
Windows 11/10(64-bit) only

Package Content

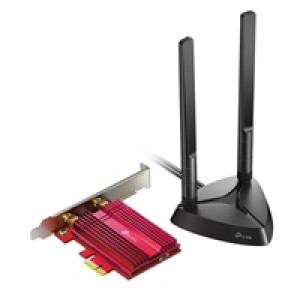

Archer TX3000E
Magnetized Antenna Base with 1m RF Cable
Two High Gain Antennas
Low-Profile Bracket
Bluetooth Header Cable
Quick Installation Guide
Resource CD
