2K 5MP Live View
Always know what happens in front of your door through the Tapo app. With the starlight sensor and 2K 5MP resolution, check all the fine details captured even in low-light environments.

Color Night Vision
With the embedded spotlight and starlight sensor, Tapo D230S1 reveals high-fidelity details and color at night.

Head-to-Toe View
With the camera?s ultra-wide FOV(160° Diagonal), Tapo 4:3 live view ensures users can check visitors from head-to-toe as close as 1m?, which shows more vertical details than other 16:9 doorbells'.

Flexible Placement, Flexible Views
Different wedge choices allow users to make the doorbell suits more placement scenarios. Users can also use wedges to adjust the views.

Longer Battery Life
The rechargeable and removable battery with a low-power protocol extends your usage.

Smart AI Detection and Notification
Smart AI algorithms identify people, pets, packages, and cars, and notify users as needed.

Multiple Ways to Answer
With two-way audio or a recorded quick response, communicate directly with your deliveries through the Tapo app.

Flexible Storage Choice
Save recorded videos on the hub-installed microSD card (up to 512 GB) or by using Tapo Care cloud storage services.

Anti-theft Alarm
Be alerted when someone trying to take the doorbell off with the anti-theft alarm function.

Water & Dust Resistant IP64
Operates well on rainy days and in damp environments.

Specifications

Image Sensor
1/2.7" Progressive Scan CMOS Sensor

Lens
Focal Length: 2.1 mm
Aperture: F2.1
Field of View: 166° (Diagonal), 135° (Horizontal), 102.8° (Vertical)

Night Vision
850 nm IR LED (25 ft / 7.6 m)
Full-Color Night Vision

Lighting
Built-In Spotlights

Hub Compatibility
Compatible with H200 (Included)

Interface and Button
1x RESET Button
1x Doorbell Button
1x Anti-Theft Button

Device Compatibility
Works with Tapo smart sensors, buttons, Sub-1G switches, cameras, and video doorbells.

Connection Capacity
Up to 64 Sub-1G switches, sensors, or buttons + 4 cameras or video doorbells

Interface and Button
1x Ethernet Port
1x RESET Button
1x MicroSD Card Slot (Up to 512 GB)
1x SYNC Button

Maximum Resolution
2K 5MP (2560 x 1920px)

Frame Rate
15 fps

Digital Zoom
16x

Video Compression
H.264

Live View
Yes

Image Enhancement
3DNR
WDR

Audio Input and Output
Built-in Microphone and Speaker

Audio Communication
Two-Way Audio with Noise Cancellation

Siren Volume
Doorbell:
96 dB (Anti-theft siren, Level measured at 4-inch/10-cm distance)
Hub:
100 dB (Level measured at 4-inch/10-cm distance)

Local Storage
MicroSD Card Slot on Hub (Up to 512 GB)

Cloud Storage
Tapo Care Cloud Storage Services (Subscription required)

Sensor
Single PIR Motion Sensor (FOV: 130° horizontal)
One Ambient Light Sensor

AI Detection
Motion Detection
Person Detection
Pet Detection
Vehicle Detection
Package Detection

Activity Zones
Yes
*Only works with Motion Detection.

Output Notifications
System Notification
System Notification with Snapshot (Tapo Care Services)

Network Connectivity
Connect via Wi-Fi

Wireless Connectivity
IEEE 802.11b/g/n, 2.4 GHz Wi-Fi
Sub-1G, 868MHz (Used for local connection between doorbell and hub)

Ethernet Port
1x 10/100 Mbps RJ45 Port on Hub

Security
On-Device Machine Learning
128-bit AES Encryption with SSL/TLS
WPA/WPA2-PSK

Power Source
Doorbell: 6700 mAh Removable Rechargeable Lithium-ion Battery
Hub: 9V DC Power Adapter

Input Voltage
Doorbell Battery Pack Adapter Input: 100-240 V, 50/60 Hz
Hub Adapter Input: 100-240 V, 50/60 Hz, 0.3 A

Output Voltage
Hub Adapter Output: 9.0 V, 0.85 A Doorbell Battery Pack Adapter Output: 5.0 V, 1.0 A
Hub Adapter Output: 9.0 V, 0.85 A

Smart Integration
Google Assistant, Amazon Alexa

Weather Resistance
IP64

System Requirements
Tapo App: iOS 12.0 or higher, Android 4.4 or higher

Mounting Options
Stick to a Wall
Mount to a Wall

Dimensions ( W x D x H )
Doorbell Dimensions: 5.7 x 0.21 x 1.3 in (146 x 54.5 x 35.5 mm)
Hub Dimensions: 2.8 x 2.8 x 1.2 in (71.45 x 71.45 x 31.25 mm)

Certifications
CE, RoHS, RCM,R-NZ,FCC, EAC, Triman, UKCA

Package Content

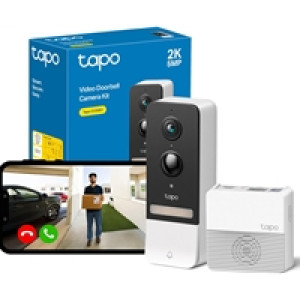

Tapo Video Doorbell x 1
Tapo H200 Hub x 1
Tapo A100 Battery x 1
DC Power Adapter x 1
RJ45 Ethernet Cable x 1
USB Adapter Cable x 1
Screws and Anchors x 3
3M Adhesive x 1
Mounting Bracket x 1
Mounting Template x 1
15° Mounting Wedge x 1
Doorbell Detaching Pin x 1
Button Sticker x 1
Mounting Wedge Screw x 5
Quick Start Guide
