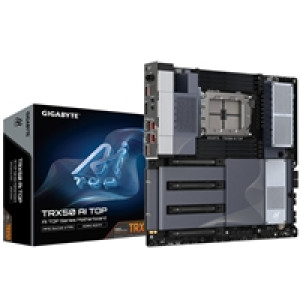

TRX50 AI TOP

Key Features
Training your own AI on your desk
Socket sTR5: Supports AMD Ryzen? Threadripper? PRO series/ Ryzen? Threadripper? series Processors
Breakthrough Performance:16+8+4 Phases Digital VRM Solution
8 Channel DDR5:8*SMD ECC R-DIMMs with Maxmium 2TB capacity
Reinforced Overall Thermal:VRM Thermal Armor Advanced & M.2 Thermal Guard
Ultimate Scalability: 4*PCIe 5.0 x16 slots for Multi-GPU and 4*PCIe 5.0 x4 M.2 slots
Next-gen Connectivity: Dual USB4® Type-C ports
Blazing Fast Networks: Dual 10GbE LAN, Wi-Fi 7 with Ultra-high gain directional antenna & WIFI EZ-Plug
PCIe UD Slot X:PCIe 5.0 x16 slot with 10X strength for graphics card
EZ-Latch Click:M.2 heatsinks with screwless design
EZ-Latch Plus:M.2 slots with quick release design
Hi-Fi Audio with DTS:X® Ultra:ALC4080+ALC897 CODEC
UC BIOS:User-Centred intuitive UX with Quick Access function

Specification

CPU
AMD Socket sTR5, support for:
AMD Ryzen? Threadripper? PRO 9000-WX Series Processors/ AMD Ryzen? Threadripper? 9000 Series Processors/ AMD Ryzen? Threadripper? PRO 7000-WX Series Processors/ AMD Ryzen? Threadripper? 7000 Series Processors

Chipset
AMD TRX50

Memory
Support for DDR5 ECC Registered memory modules (RDIMM/RDIMM-3DS)
8 x DDR5 DIMM sockets supporting up to 2 TB of system memory
- AMD Ryzen? Threadripper? PRO 9000-WX/PRO 7000-WX Series Processors support 8-Channel memory architecture
- AMD Ryzen? Threadripper? 9000/7000 Series Processors support Quad Channel memory architecture
Support for AMD EXtended Profiles for Overclocking (AMD EXPO?) and Extreme Memory Profile (XMP) memory modules

Audio
Realtek® ALC4080 CODEC (rear panel audio)
- Support for DTS:X® Ultra
- High Definition Audio
- 2-channel
Realtek® ALC897 CODEC (front panel audio)

LAN
2 x Marvell® AQtion AQC113C 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/ 1 Gbps/100 Mbps)

Wireless
Qualcomm® Wi-Fi 7 QCNCM865
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11be 320MHz wireless standard

Expansion Slots
3 x PCI Express x16 slots (PCIEX16_1/PCIEX16_2/PCIEX16_3), integrated in the CPU:
- AMD Ryzen? Threadripper? PRO 9000-WX/PRO 7000-WX Series Processors support PCIe 5.0 x16 mode
- AMD Ryzen? Threadripper? 9000/7000 Series Processors support PCIe 5.0 x16 mode
(The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16_1 slot.)
1 x PCI Express x16 slot (PCIEX16_4), integrated in the CPU:
- AMD Ryzen? Threadripper? PRO 9000-WX/PRO 7000-WX/9000 Series Processors support PCIe 5.0 x16 mode
- AMD Ryzen? Threadripper? 7000 Series Processors support PCIe 4.0 x16 mode

Storage Interface
3 x M.2 connectors (M2C_CPU/M2B_CPU/M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:
- AMD Ryzen? Threadripper? PRO 9000-WX/PRO 7000-WX/9000 Series Processors support PCIe 5.0 x4/x2 SSD
- AMD Ryzen? Threadripper? 7000 Series Processors support PCIe 4.0 x4/x2 SSD
1 x M.2 connector (M2D_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:
- AMD Ryzen? Threadripper? PRO 9000-WX/PRO 7000-WX Series Processors support PCIe 5.0 x4/x2 SSD
* The M2D_CPU connector will become unavailable when using the AMD Ryzen? Threadripper? 9000/7000 Series Processors.

4 x SATA 6Gb/s connectors
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0 and RAID 1 support for SATA storage devices

USB
CPU:
- 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
Chipset+Intel® USB4® controller:
- 2 x USB4® USB Type-C® ports on the back panel
Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
Chipset+USB 3.2 Gen 1 Hub:
- 4 x USB 3.2 Gen 1 ports available through the internal USB headers
Chipset+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports available through the internal USB headers

Internal I/O Connectors
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
4 x PCIe power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
2 x system fan headers
4 x system fan/water cooling pump headers
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headers
1 x noise detection header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
1 x power button
1 x Clear CMOS button
1 x reset button
1 x reset jumper
2 x temperature sensor headers
1 x Clear CMOS jumper

Back Panel Connectors
1 x Q-Flash Plus button
2 x SMA antenna connectors (2T2R)
1 x DisplayPort In port
1 x USB4® USB Type-C® port (DisplayPort)
1 x USB4® USB Type-C® port
6 x USB 3.2 Gen 2 Type-A ports (red)
2 x RJ-45 port
2 x audio jacks

I/O Controller
iTE® I/O Controller Chip

H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
Noise detection

BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features
Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup

Bundled Software
Norton Internet Security (OEM version)
LAN bandwidth management software

Operating System
Support for Windows 11 64-bit
Support for Ubuntu 24.04 LTS

Form Factor
E-ATX Form Factor; 30.5cm x 33.0cm
