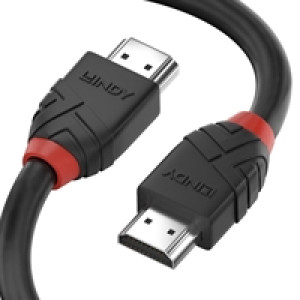

The Lindy 36470 is a 0.5-metre High-Speed HDMI 2.0 cable from Lindy?s entry-level "Black Line" series. It is designed for reliable 4K video and audio transmission in home or small office environments

Key Specifications

Resolution & Performance
Supports UHD resolutions up to 4096x2160@60Hz (4:4:4 8-bit) with a total bandwidth of 18Gbps

Audio FeaturesCapable of transmitting 32-channel audio and supports high-definition formats like Dolby TrueHD and DTS-HD MasterAudio

Construction
Features a triple-shielded design with 30AWG copper-coated steel conductors to resist corrosion and interference

Connectors
Equipped with nickel-plated connectors and gold-flashed contacts for better signal integrity.

Ethernet & ARC
Includes a dedicated HDMI Ethernet Channel and supports Audio Return Channel (ARC) for simplified audio setups

Specification

Connectors

Connector A
HDMI Type A Male

Connector B
HDMI Type A Male

Housing Material
PVC

Connector Plating
Nickel

Pin Construction
Phosphor Bronze

Pin Plating
Gold Flash

Dimensions (approx.) W x D x H
19.2 x 34.1 x 10.6 mm

Cable Construction

Length
0.5m (1.64ft)

Standard
High Speed HDMI with Ethernet

Colour
Black

Type
Round

Jacket Diameter
6 mm (0.24in)

Jacket Material
PVC

Conductor Material
Copper Coated Steel

Conductor Gauge
30AWG

Shielding
Aluminium Foil

Specification

Supported Bandwidth
18Gbps

Maximum Resolution
4096 x 2160@60Hz 4:4:4 8bit

Nominal Attenuation
300kHz-825MHz <5dB, 825MHz-2.475GHz <5dB, 2.475GHz-4.125GHz <12dB, 4.125GHz-5.1GHz <20dB

Minimum Bend Radius
60 mm (2.36in)

Operating Temperature
-10°C - 80°C (14°F - 176°F)

Storage Temperature
-10°C - 80°C (14°F - 176°F)

ATC Approved
No

Miscellaneous

Packaging Type
Polybag

Warranty (Years)
10

Certificated
RoHS, REACH, UL
