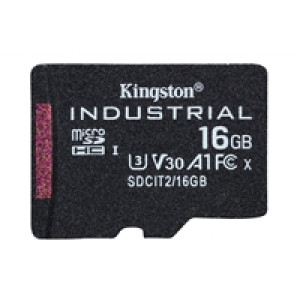

Kingston?s Industrial microSD card is designed and tested to withstand the most demanding environmental factors. With an operating temperature of -40°C to 85°C, it can operate normally even in extreme desert heat and subzero conditions. The card utilises industry-leading pSLC mode to provide top transfer speeds of up to 100MB/s. It is rated up to 1920 TBW
with 30K P/E cycles and has a built-in feature set specific to endurance, performance and industrial needs. Kingston?s Industrial microSD ships with a UHS-I SD adapter and is available in capacities from 8GB-64GB3.

Specifications

Capacities
8GB, 16GB, 32GB, 64GB

Performance
Class 10, UHS-I, U3, V30, A1

Endurance
Up to 1920 TBW
30K P/E cycles

NAND
TLC in pSLC mode

microSDHC card dimensions
11mm x 15mm x 1mm

SD adapter dimensions
24mm x 32mm x 2.1mm

Format
FAT32 for SDHC and ExFAT for SDXC

Operating & storage temperature
-40°C to 85°C

Voltage
3.3V

Industrial features
Bad block management
Strong ECC engine
Power failure protection
Wear levelling
Auto-refresh read distribution protection
Dynamic data refresh
SiP ? System in Package
Garbage collection
Health monitoring

Thermal cycle testing
Interval testing completed at various extreme temperatures

Vigorous temperature humidity bias
Several hundred hours of testing to ensure durability at varying levels of humidity

Wide temp chamber testing
Completed on all SDCIT2 cards prior to production

Warranty
3 years
