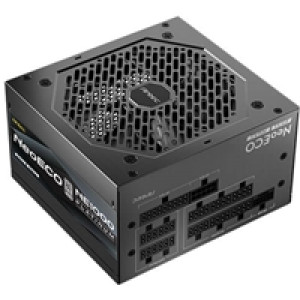

Antec NE1000 NeoECO Platinum ATX3.1 power supply

Introducing the NeoECO Platinum ATX3.1 power supply, crafted to deliver exceptional performance and rock-solid stability for gamers and enthusiasts. Featuring next-generation ATX 3.1 and PCIe 5.1 support, high-quality Japanese capacitors, and 80 PLUS Platinum efficiency, it ensures outstanding and consistent power delivery. The PhaseWave design provides smooth, reliable output, while the 120 mm FDB silent fan delivers efficient, quiet cooling. Its fully modular design allows for easy cable management, and the Zero RPM Manager intelligently controls fan operation, activating it only when needed to balance silent performance with optimal cooling. Backed by the CircuitShield suite of industrial-grade protections, the NeoECO Platinum ATX3.1 is a powerful, efficient, and dependable choice for modern PC builds.

ATX 3.1 & PCIe 5.1 Compatible
Our new NeoECO Platinum ATX3.1 power supplies are formally certified for ATX 3.1 compliance, meeting the high standards for reliability and power efficiency, and ensuring the utmost level of quality and performance.

The included PCIe 5.1 12V-2x6 GPU cable enables seamless compatibility with the latest graphics cards.

High-Quality JP Capacitors
Equipped with high-quality Japanese capacitors, our power supplies achieve unprecedented tight voltage regulation and minimal ripple and noise, maximizing your system's performance.

PhaseWave TM Design
Introducing our PhaseWave Design, a server-class LLC design featuring synchronous rectification based on a DC-DC topology. This design ensures unparalleled power delivery efficiency and stability for your system.

10-Year Warranty
The new PSU line from Antec pushes the standard for excellence with the circuit shield suite of industrial protections and is backed by a 10-year warranty.

Zero RPM Manager
With the Zero RPM fan mode, our PSU ensures a longer lifespan and quieter operation. The thermal sensors activate the fan only when necessary, providing optimal cooling while minimizing noise levels.

120mm FDB Silent Fan
The whisper-quiet, 120mm fluid-dynamic bearing (FDB) fan provides high airflow with the durability and longevity that is a signature of Antec quality.

Full Modular Cable Management
Allows users to use only the necessary cables and eliminates excess cables that can obstruct and reduce airflow for improved cooling performance.

Compact Size
Compared to typical power supplies on the market, it is smaller in size and can be used with a wider range of computer cases.

Specifications

Model
NE1000 PLATINUM ATX3.1

Safe Model
X8000A587EU-25

Type
ATX 12V 3.1

Dimension
140(L) * 150(W) * 86(H)

Modular
Full-Modular

Warranty
10 years

Input Voltage
100V-240V

Input Current
12A-6A

Input Frequency Range
50Hz-60Hz

PFC
Active PFC

Power Good Signal
100-150ms

Protection
OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO

Output Capacity
1000W

Operation Temperature
0~40°C

Regulatory
cTUVus / TUV / CB / RCM / CE / FCC /
BSMI / 3C / UKCA / ICES

Fan
120mm FDB Silent Fan

Certifications
80 Plus Platinum

Connector
1 x 24(20+4)pin MB
1 x 16(12+4)pin PCIE 5.1 12V-2x6
2 x 8(4+4)pin CPU
3 x 8(6+2) Pin PCI-E
9 x SATA
3 x Molex
